APARATE DE SUDURĂ PT. FIBRĂ OPTICĂ:

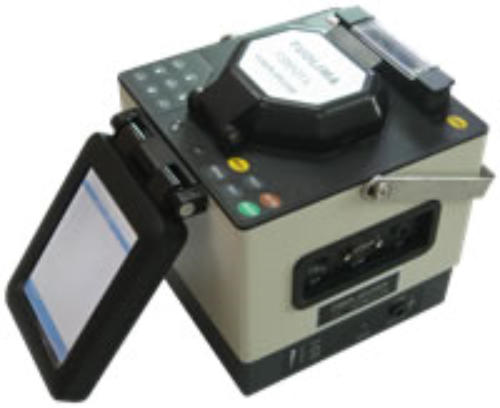

FSM-01B
Aparat de sudură cu ecran color şi accesorii, fără
“cleaver”, meniu multilingv.
•
Color LCD monitor & 256 magnification.
•
8 Sec. splice time, 40 Sec. tube-heat time.
•
Max. wind velocity of 15m/s.
•
Simultaneous X and Y views.
•
SYSTEM TEST ensures the best working condition.
•
User programmable.
•
Auto check fiber end face.
•
Auto calibrate parameters.
•
Store 8000 groups of splice results.
•
Large capacity internal battery.
•
Multiple language options

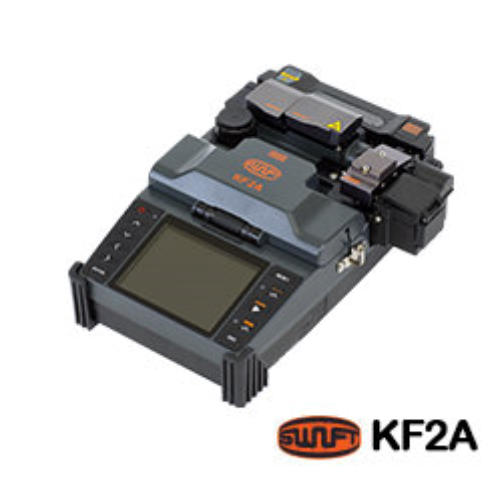

SWIFT KF2A Clad to Clad Alignment (Korea)
Aparat de sudură cu ecran color, accesorii şi “cleaver” inclus, meniu multilingv.
•
Fiber alignment
-Fixed Clad to Clad Alignment
•
Applicable type of fibers - 0.25mm, 0.9mm, 2.0mm, 3.0mm Indoor cable
•
Fiber count - Single fiber
•
Applicable fiber dimensions
- Cladding diameter: 125um, Coating diameter: 250, 900um
•
Fiber setting and cleaved length - 5mm to 16mm
•
Splicing modes - Splice mode: 40, Heater mode: 20
•
Typical Splice Loss - SM: 0.04dB, MM: 0.02dB, DS: 0.06dB, NZDS: 0.06dB
•
Return loss - > 60dB
•
Splicing time - Typical 7sec (Standard SM, SM-SM mode)
•
Splice loss estimate - Available
•
Sleeve heating time - Typical 30sec
•
Applicable protection sleeve - 40mm, 60mm and micro sleeves
•
Storage of splice result - Data:2000ea Up to, Image: 2000ea Up to
•
Tension test - 1.96N
•
Operating condition - Altitude: 0~5,000m above sea level, Temperature: -10C~50C,
Humidity: 0~95%,Wind: 15m/s, non-condensing, dust proof, water proof, shock proof
•
Storage condition - Temperature: -40C~80C, Humidity: 0~95%
•
Dimension - 133(W)x212(L)x70(H)mm
•
Weight - 1.35kg(Including battery)
•
Viewing method and display - Two CMOS cameras and 3.5-inch color LCD monitor
•
Fiber view and magnification - X/Y : 200X
•
Power supply - Li-ion battery(DC 14.8V, 3400mAhｘ2), 100 ~ 240V AC Adapter
•
No. of splice cycles with battery - Typical 200 cycles
•
Electrode life - More than 3,000 times
•
Terminals - USB

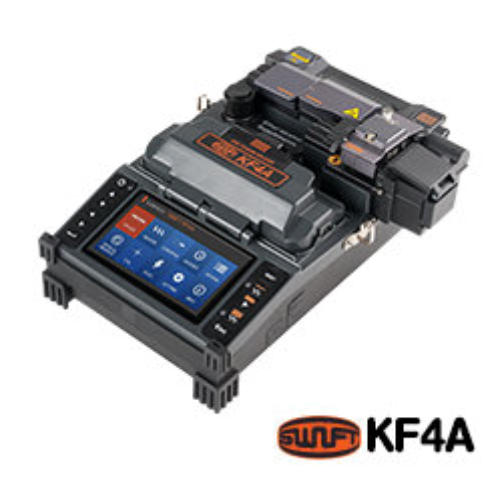

SWIFT KF4A Active Cladding Alignment, ALLINONE+ (Korea)
Aparat de sudură 100% automatizat cu reglare pe 4 directii
•
Fiber alignment
- Active Clad to Clad Alignment
•
Applicable type of fibers - 0.25mm, 0.9mm, 2.0mm, 3.0mm Indoor cable
•
Fiber count - Single fiber
•
Applicable fiber dimensions
- Cladding diameter: 125um, Coating diameter:150um-3mm
•
Fiber setting and cleaved length - 5mm to 16mm
•
Splicing modes - SSplice mode: 300, Heater mode:100
•
Typical Splice Loss - SM: 0.02dB, MM: 0.01dB, DS: 0.04dB, NZDS: 0.04dB
•
Return loss - > 60dB
•
Splicing time - Typical 7sec With SM
•
Splice loss estimate - Available
•
Sleeve heating time - Typical 13sec, IS-60 mode with IS-20 sleeve
•
Applicable protection sleeve - 40mm, 60mm and micro sleeves
•
Storage of splice result - Date : Up to 5,000 (Image: Up to 5,000 pec)
•
Tension test - 1.96N to 2.25N
•
Operating condition - Altitude: 0~5,000m above sea level, Temperature: -10C~50C,
Humidity: 0~95%, Wind: 15m/s, non-condensing, dust proof, water proof, shock proof
•
Storage condition - Temperature: -40C~80C, Humidity: 0~95%
•
Dimension - 132(W)x212(L)x73(H)mm
•
Weight - 1.5kg (Including battery)
•
Viewing method and display - AXIS Two CMOS cameras and 4.3-inch color LCD monitor
•
Fiber view and magnification - X/Y : 130X MAX:260X
•
Power supply - DC Lithium polymer battery(DC 14.8V, 1650mAhx2), 100 ~ 240V AC
•
No. of splice cycles with battery - Typical 200 cycles
•
Electrode life - More than 21,000 times
•
Blade lifetime - 75,000 cleaves
•
Terminals - USB

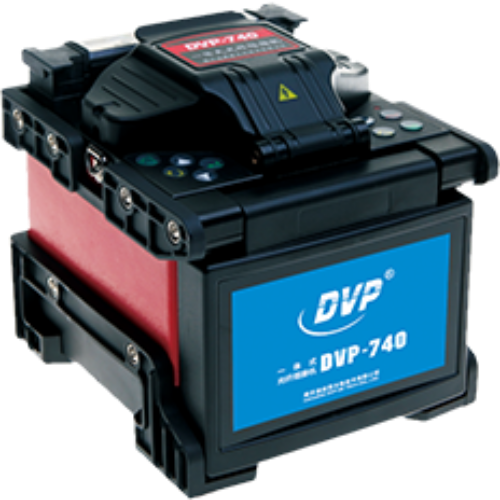

DVP-740 Single Fiber Fusion Splicer
Aparat de sudură cu ecran color şi accesorii, meniu multilingv.
•
Applicable fibers - SM, MM, DS, NZ-DS(G655), EDF, Bending Loss Insensitive
fiber(G657), Pigtail, Drop cable and connector.
•
Fiber cleaved length - 8-22mm
•
Average splice loss - 0.02dB(SM), 0.01dB(MM), 0.04dB(DS), 0.04dB(NZDS)
•
Return loss - ≥60dB
•
Tension test - 2.0N(200gf)(Standard)
•
Protection sleeve length - 20mm, 40mm, 60mm
•
Splice Program - 5 groups of preset programs, 75 group of manual setting
•
Language - English, Chinese, Russian, Spanish, Portuguese.
•
Environment conditions - -25 C +50C (operation temperature), 0-95%RH (humidity)
•
Storage environment - -40C +80C (temperature) , 0-95%RH (humidity)
•
Power supply - AC adaptor: 85-260V input voltage
•
Internal battery - 12V, 6Ah, up to 120 times of continuous splice and heat
•
Dimensions/Weight - 142(D)×122(W)×138(H)mm/1.95kg
