PENTRU MAI MULTE INFORMAŢII NU EZITAŢI SĂ NE CONTACTAŢI.
Noi oferim un preţ bun pentru o calitate bună...
Echipamente pentru Telecomunicaţii
PRODUSE:
Studiouri TV

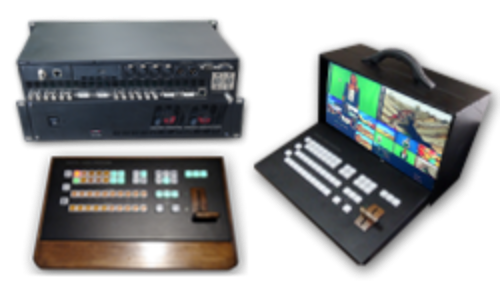

DSC 938 HD / SD video switcher
•
INTRARI VIDEO: 8x HD / SD SDI sau CVBS; 2x HDMI
•
INTRARI AUDIO: SDI embedded stereo audio or two mono sound
channels.4 analog audio inputs (XLR) which can be configured as 4
mono inputs or 2 stereo inputs.
•
IESIRI VIDEO: 4x HD/SD SDI; 1xHDMI (Multi-View)
•
IESIRE AUDIO: Embedded SDI /HDMI +1xStereo Audio
•
Built -in Multi-view: 1920x1080i
•
DIMENSIUNE: Rack 2U
•
ALIMENTARE: 12V 6A cu posibilitate de redundanta
•
DSK: 2 CANALE
•
MANAGEMENT: via ETHERNET
•
VIDEO PLAYER: 2 channel play-list SD Card player
•
CHROMA KEY: 2
•
PICTURE-in-PICTURE: 4

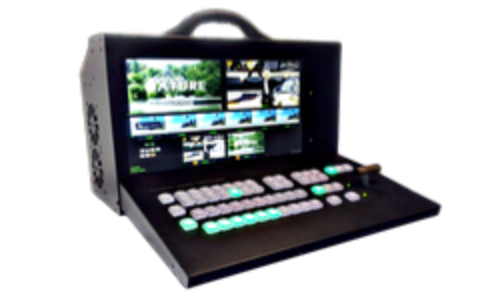

Portable Mixer DSC928M
•
4 inputs switchable CVBS / PAL
•
4 analog audio inputs 1 stereo analog audio output
•
Ability to adjust the sound level (/ - 6db) separately for each channel.
•
4 SD (HD) SDI output programmable
•
A-channel titles TitleMaster titles (HDMI mode) and Luma Key titles
•
Frame synchronizers for each video input
•
2 logos electronic watches
•
Two chroma key
•
Two players on the SD card.
•
6 slides (switchable)
•
Picture-in-picture mode (2 PiP)
•
Multiscreen with a resolution of 1920x1080i
•
PlayoutHDMI-проигрыватель видеофайлов.
•
Communication with the PC by "Ethernet" for upgrade recording of
logos registration of multiskrin configuration
•
Embedded Video Sources
•
Built-in 1 kHz audio signal level 0 dB

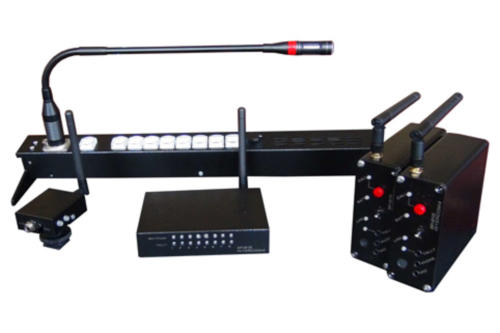

RFD - 8W Intercom Wireless System
8-channel Wireless/ Wired Intercom System
•
Supports 8-channes Intercom (Wireless and Wired).
•
Industry Standard 19” 1U rack or desktop design for easy integration.
•
Selectable channel talk, broadcast to all or a group.
•
Communication distance is up to 300 m.
•
Easy to use and extendable.
•
PC remote control via Ethernet (RJ45 ) for setting and firmware upgrade.
•
Wireless Tally light.
•
Configuration flexibility.

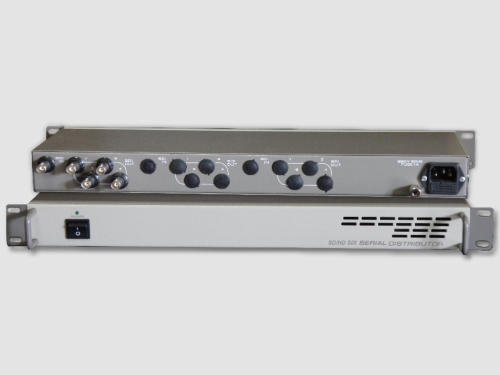

Distributor-Amplificator 1x4 SDI
Specifications:
•
The number of inputs is 1 with the recovery of the clock (reclocking)
•
Input resistance-75 Ohm.
•
Correction of the input cable is automatic up to 75m for HD SDI and up to
300m for SD SDI. Cable type Belden 1694 A or equivalent.
•
Connectors-BNC.
•
The number of outputs is 4 with the recovery of the clock frequency
(reclocking).
•
The range is 800 mV ± 10%.
•
Housing-Metallic 483х120х44 (19 " 1U)
•
Operating temperature range is 5 .. 40 deg. FROM
•
Power supply -220 V 50 Hz

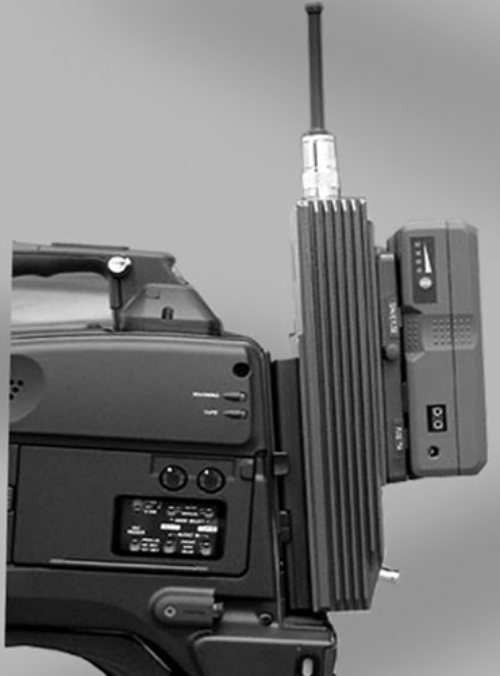

VIDEO LINK HD
Sistem de transmisie wireless a semnalului TV adaptabil.
Specifications:
•
Modulation: DVB-T 2K: QPSK, 16-QAM
•
Data Rate: from 5 to 12 Mb/s
•
RF output frequency 8 preset channels: 762-818 MHz
•
16 preset channels: 2100-2700 MHz
•
Channel bandwidth: 8 MHz
•
RF Power: 100 mW
•
Inputs: SD-SDI / HD-SDI / HDMI
•
Power Consumption 10-16 V: (<9W)
•
Dimensions: 190x104x45
•
Weight: 1,05 Kg
•
Mounting On camera instead of battery.
•
Fast start-up time 10 seс
